Cryogenics
-

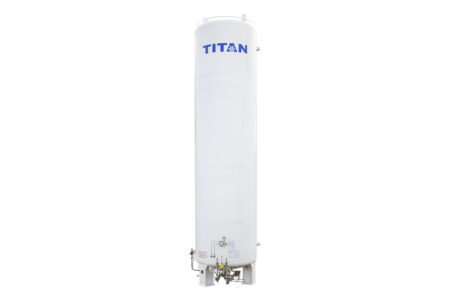

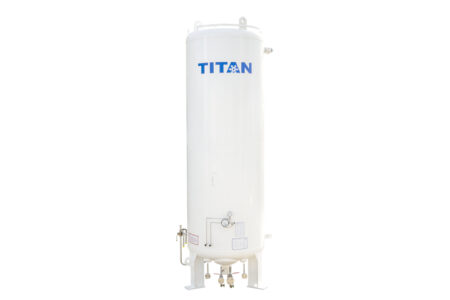

Titan® Large Bulk Stations
Titan® Large Bulk Industrial Cryogenic tanks are engineered for exceptional performance, durability, versatility, and value. Available for Oxygen, Nitrogen, or Argon service.
Models are available in capacities of 1,500 up to 13,000 gallon sizes and in 250 or 500 psig working pressures (other sizes and service pressure models are also available).
High Performance:
- Vacuum-jacketed and super insulated for reduced product losses and extended hold times
- Combination pressure building/economizer regulator
- Standard dual relief system
Durability & Design:
- Welded stainless steel piping
- Built to ASME Sec. VIII, Div.1 specifications
- Plumbing in accordance with ASME B31.3
- Extended bonnet RegO® control valves
- Backed by competitive 5-year warranty
- Telemetry ready – CylConnect® remote monitoring systems give instant out-of-stock alerts and forecasts when liquid gas gets low
-
Titan® Large Bulk CO2 Stations
Titan® Cryogenic Large Bulk CO2 stations are engineered for exceptional performance, durability, versatility, and value. Available in 6-ton to 50-ton capacity (larger capacities upon request).
Titan® Cryogenic Large Bulk CO2 come equipped with standard features of stainless steel-alloy outer jacket, re-conditioning coils, and extra liquid & vapour lines.
Features:
- Heavy-duty, dent-resistant, steel-alloy outer jacket
- Dual relief system – eliminates safety concerns
- Stainless steel piping and ball valves standard on all models
- Custom configurations available
- Stainless steel inner vessels available
Design:
- Vacuum-jacketed design eliminates the need for mechanical refrigeration and the associated monthly cost of electrical and maintenance
- Superior hold time eliminates product losses due to venting
- Lowest overall cost of ownership
- Extra-large capacity and horizontal models available
- Telemetry ready – CylConnect® remote monitoring systems give instant out-of-stock alerts and forecasts when CO2 gets low
-

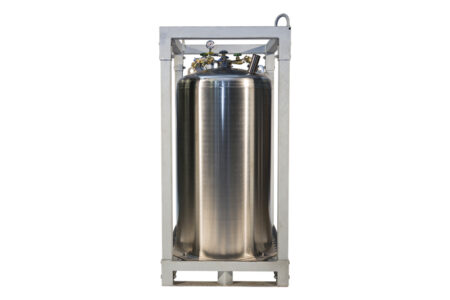

Titan® Small Bulk Stations
Titan® Cryogenic Small Bulk Industrial tanks are designed to operate like large bulk stations, but with added portability. Available for Oxygen, Nitrogen, Argon, or CO2 service.
Models are available in 450 L up to 5600 L sizes rated up to 500 psig. Comes equipped with plumbing for quick telemetry/remote monitoring installation of CylConnect® technology.
High Performance:
- Excellent thermal performance (super-insulated)
- Up to 500 psig available (VHP)
- Highest gas withdrawal rates
- External vaporizer (most models)
- External pressure builder
- Extended bonnet RegO® control valves
Durability & Design:
- For indoor or outdoor installations
- All stainless steel construction
- Features top and bottom fill valves
- Easy fill by conventional fill trucks or microbulk trucks
- Dual relief circuit with diverter valve
- Mounted on a hot-dip galvanized steel skid
- Equipped with forklift accessible skid and lifting lugs
- 5-Year warranty on vacuum
- Upgrade: CylConnect® remote monitoring systems – always know how much product is left in your tank!
-

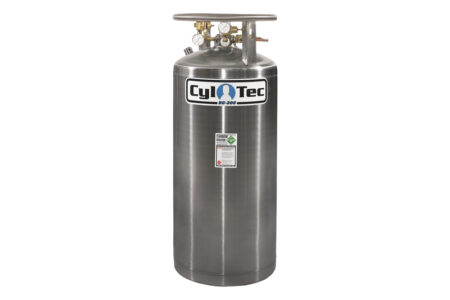

Titan® Small Bulk CO2
Titan® Cryogenic Small Bulk CO2 systems provide cost-effectiveness and efficiency of using cryogenic liquid gas in a convenient small bulk vessel. Each tank comes equipped with full length vaporization coils, allowing for the highest gas delivery rates. All tanks are made to ASME Section VIII, Div. 1 standards.
Exceptional performance for bulk beverage CO2 applications, such as fast food, restaurants, convenience stores, breweries, theatres, stadiums, and more.
Features:
- Exceptional fill times
- Full length coil for highest vaporization rates
- BC-550 & BC-750 equipped with liquid withdrawal capability
- BC-750 has additional components for high flow applications
Design:
- All type 304 stainless steel construction
- Heavy duty RegO® regulators and safeties
- Thickest outer shell in the industry – dent-resistant
- Designed to ASME specifications
- Custom top-works plumbing available
Accessories:
- Mounting legs are available on all units
- CO2 Gas detection alarm systems
- Fill boxes, fill hoses, and other accessories are also available
Upgrades:
- Pool coat – add a powder coating to resist chlorine reactions
- Level Eye® – accurately measure the remaining liquid level capacity in your tank using the Level Eye® digital gauge
- CylConnect® – use remote monitoring systems on all tanks out in the field to always know how much product is left in each tank
-

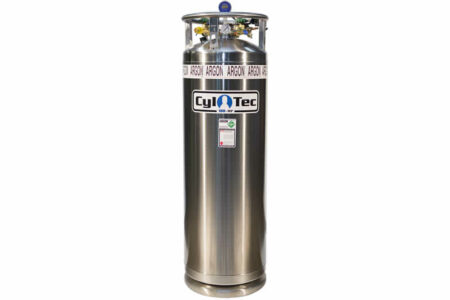

Cryogenic Liquid Cylinders
Titan® Cryogenic Liquid Cylinders are ideal for both liquid or gas use, and are available up to 500 psi.
Cryogenic liquid cylinders can be used for Oxygen, Nitrogen, Argon, Carbon Dioxide, and Nitrous Oxide service. Models are available in foot ring, and round or square caster bases.
Features:
- O2, N2, Ar, CO2 and N2O service
- Ideal for gas use or liquid use
- Pressure: 350 or 500 psig MAWP
- Dent-resistant outer shell
- All stainless steel construction
- 4 handling-ring supports and heavy-duty foot ring
- Available in round or square caster bases
Benefits:
- Superior product holding time
- Highest gas withdrawal rates
- 5-Year warranty on vacuum
- Easy-to-read magnetic contents gauge
- One combination pressure building regulator
Upgrades:
- Level Eye® – accurately measures the remaining liquid level capacity in your tank using the Level Eye® digital gauge
- CylConnect® – use remote monitoring systems on all tanks out in the field to always know how much product is left in each tank
- Easy-Adjust® – easily adjust the regulator to the outlet pressure required for your tank
